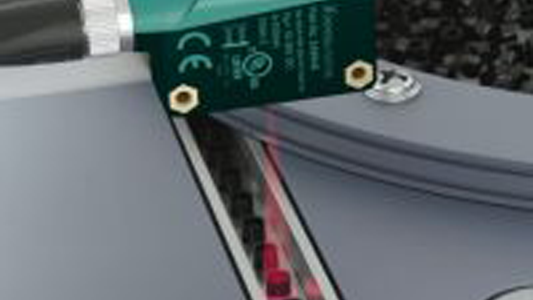

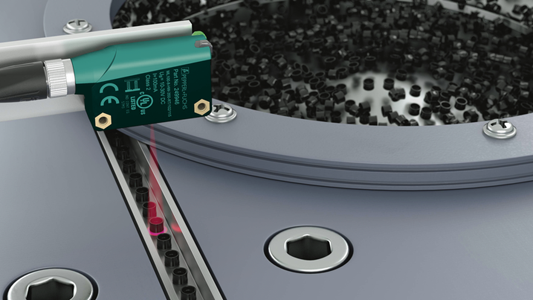

The ML100 series of miniature photoelectric sensors raises the bar on performance with a light spot that is optimized for easier alignment and more consistent detection. It also has the greatest optical power and longest sensing distances in its class, up to 30 meters (98 feet), which is 50% greater than most competitive models.
Its unique LED technology, called PowerBeam™, means not only can it sense objects much farther than competitive housings with its footprint, but also with increased optical signal strength for improved resistance to dust or contaminants on the lens.
The new light spot is a significant differentiator not just because it is more powerful, but also because of its sharply defined shape and lack of a central sensing void, or the black circle common to some conventional sensor light spots. This sharp and consistent light spot ensures that a target is detected reliably over the entire beam pattern.
Enhanced status indication actively details for the user what the photoelectric sensor is doing at any given moment. And because the status LEDs are highly visible from 360°, users can quickly ascertain the sensor´s status.
The ML100 series sensors provide an industry-standard mounting pattern, but are far more durable than a typical sensor with the same mounting style. Where most competitive models have plastic threaded holes that are extremely susceptible to damage during mounting due to excessively applied torque, the ML100 series feature metal bushings for exceptional durability.
The ML100 series is cULus listed. The ML100 series boasts what is among the lowest current consumption in its class; many competitive models have a current consumption rating that is 25-50% higher than the ML100. Lower current consumption directly translates into energy savings, and also cuts costs because fewer power supplies can support a larger number of sensors.
The ML100 provides automatic crosstalk protection, meaning that two ML100 sensors can be used together without any mounting restrictions. They are also highly immune to ambient light, even in environments using high frequency energy-saving fluorescent lights. Additionally, a broader temperature rating (-30 °C to 60 °C; -22 °F to 140 °F) means the ML100 provides more reliable operation in both lower temperature and higher temperature environments, including cold storage areas, compared with competitive options.

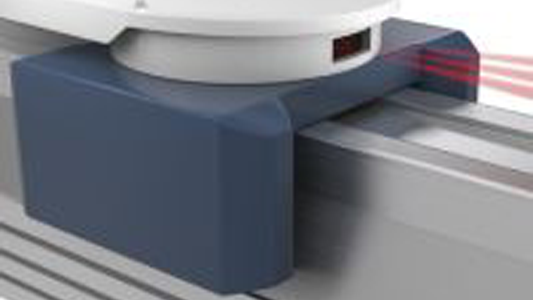

Diffuse sensors use only one sensor housing and no reflector, and longer sensing distances are possible.
Details and model numbers for diffuse sensing...
Divergent mode sensors are a specialized version of a diffuse mode sensor with a much larger beam or light spot (divergent lens) suitable for detecting clear/transparent objects.
Details and model numbers for divergent sensing...
Background suppression involves only one sensor housing and no reflector, while sensing even different color objects consistently up to a precise distance.
Details and model numbers for background suppression sensing...
Background evaluation sensors combine the benefits of a retroreflective sensor with those of a background suppression sensor, allowing it to operate using nearly any background as a makeshift reflector.
Details and model numbers for background evaluation sensing...
Retroreflective sensors utilize only one sensor housing with a reflector, enabling longer sensing distances than diffuse mode.
Details and model numbers for retroreflective sensing...
Thru-beam mode employs two housings and no reflector for the longest possible sensing distances and highest optical power.
Details and model numbers for thru-beam sensing...
Get your technical, product, or application question answered by our team of product engineering experts.
User Friendly Like No Other - ML100 Background suppression and evaluation, divergent and diffuse mode sensors provide a very bright, small, and sharp light spot for simple setup, best switching accuracy, and very reliable detection of objects. Retroreflective and thru-beam sensors provide a more visible and larger light spot for easier alignment, greater detection range, and better stability control.
Download your copy of Miniature Photoelectric Sensors ML100 Series.
The Quick Select Product Guide is an excellent reference guide for Pepperl+Fuchs´ sensing technologies. The guide provides technology overviews and concise product summaries for all our product portfolios.
Download your copy of the Quick Select Product Guide.
Accurate By Design - From logistics centers to warehouses and airports, reliable material handling is indispensable in a modern material flow system. Enjoy the smooth operation of your logistics processes without any collisions, failures or process interruptions. Our experts help you select the right sensor technology for your specific application.
Download your copy of Sensor Technology for the Material Handling Industry.
Pepperl+Fuchs´ cULus listed ML100 miniature photoelectric sensors provide enhanced status indication that actively details what the photoelectric sensor is doing at any given moment. And because the status LEDs are highly visible from 360°, users can quickly see the sensor´s status.
The ML100 series sensors provide an industry-standard mounting pattern, but are far more durable than a typical sensor with the same mounting style. Where most competitive models have plastic threaded holes that are extremely susceptible to damage during mounting due to excessively applied torque, the ML100 series feature metal bushings for exceptional durability.
Get your technical, product, or application question answered by our team of experts.

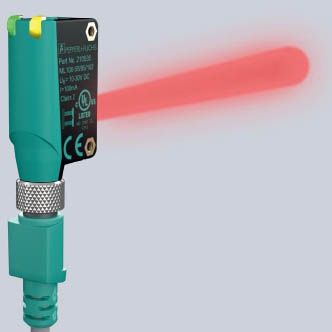

ML100 diffuse mode offers the longest sensing distance of any diffuse mode sensor in its class. Diffuse mode allows using a single sensor housing with no reflector required. Diffuse mode models are ideal for long-range detection of similar objects when a reflector or thru-beam mounting is not possible or desired. ML100 diffuse mode sensors can be considered when detecting objects with no background, such as over the top of a conveyor sidewall.
| Model Number | Features |
|---|---|
| ML100-8-1000-RT/103/115 | 1000 mm sensing range, 1 PNP output, 2 m cable |
| ML100-8-1000-RT/102/115 | 1000 mm sensing range, 1 NPN output, 2 m cable |
| ML100-8-1000-RT/95/103 | 1000 mm sensing range, 1 PNP output, 4-pin M8 connector |
| ML100-8-1000-RT/95/102 | 1000 mm sensing range, 1 NPN output, 4-pin M8 connector |
| OMH-10 | Mounting bracket accessory |
ML100 diffuse mode with divergent beam is a type of diffuse mode which has a very wide beam pattern or light spot. The divergent beam sensor light spot is over six times as large as that of the standard diffuse mode.
Divergent beam photoelectric sensors are well suited for detecting small, glossy, or irregular objects, from wires and yarns to tissue packing or shiny foil pouches. Additionally, divergent beam sensors do not need a reflector to operate, making them a suitable alternative to retroreflective sensors, especially when detecting clear or transparent objects.
| Model Number | Features |
|---|---|
| ML100-8-W-200-RT/103/115 | 200 mm sensing range, 1 PNP output, 2 m cable |
| ML100-8-W-200-RT/102/115 | 200 mm sensing range, 1 NPN output, 2 m cable |
| ML100-8-W-200-RT/95/103 | 200 mm sensing range, 1 PNP output, 4-pin M8 connector |
| ML100-8-W-200-RT/95/102 | 200 mm sensing range, 1 NPN output, 4-pin M8 connector |
| OMH-10 | Mounting bracket accessory |
ML100 diffuse mode with background suppression models offer the benefits of diffuse mode sensing without the drawbacks. Diffuse mode sensing means that no reflector is required and only one sensor housing is required, as opposed to a thru-beam configuration that requires a transmitter housing and receiver housing. But unlike standard diffuse mode sensing, background suppression precisely detects objects only to a user-defined distance and ignores objects beyond the cut-off.
Also, ML100 background suppression models have very low sensitivity to object color. Background suppression models of ML100 are ideal for ignoring background objects such as conveyor sidewalls and machine panels and detecting objects such as printed media or totes on a conveyor with varying colors without re-adjusting the sensor´s sensitivity.
| Model Number | Features |
|---|---|
| ML100-8-H-350-RT/103/115 | 350 mm sensing range, 1 PNP output, 2 m cable |
| ML100-8-H-350-RT/102/115 | 350 mm sensing range, 1 NPN output, 2 m cable |
| ML100-8-H-350-RT/95/103 | 350 mm sensing range, 1 PNP output, 4-pin M8 connector |
| ML100-8-H-350-RT/95/102 | 350 mm sensing range, 1 NPN output, 4-pin M8 connector |
| OMH-10 | Mounting bracket accessory |
| Model Number | Features |
|---|---|
| ML100-8-H-100/115/120/162 | 100 mm sensing range, 2 PNP outputs (logical AND/OR), 2 m cable |
| ML100-8-H-100/115/127/162 | 100 mm sensing range, 2 NPN outputs (logical AND/OR), 2 m cable |
| ML100-8-H-100/95/120/162 | 100 mm sensing range, 2 PNP outputs (logical AND/OR), 4-pin M8 connector |
| ML100-8-H-100/95/127/162 | 100 mm sensing range, 2 NPN outputs (logical AND/OR), 4-pin M8 connector |
| OMH-10 | Mounting bracket accessory |
ML100 diffuse mode with background evaluation is based on the triangulation principle. The receiver consists of a near element and far element allowing it to clearly distinguish between the background and an object in the detection area.
ML100 background evaluation sensors work like a retroreflective sensor, but without the need for a reflector. It does so by utilizing a fixed background (e.g. conveyor, machine part) as a reference to reliably detect objects regardless of color, texture or shape.
| Model Number | Features |
|---|---|
| ML100-8-HW-350-RT/103/115 | 350 mm sensing range, 1 PNP output, 2 m cable |
| ML100-8-HW-350-RT/102/115 | 350 mm sensing range, 1 NPN output, 2 m cable |
| ML100-8-HW-350-RT/95/103 | 350 mm sensing range, 1 PNP output, 4-pin M8 connector |
| ML100-8-HW-350-RT/95/102 | 350 mm sensing range, 1 NPN output, 4-pin M8 connector |
| OMH-10 | Mounting bracket accessory |
ML100 retroreflective sensors provide longer sensing ranges, over five times greater than those of diffuse mode models, without the requirement of using two sensor housings such as a thru-beam configuration. As all ML100 retroreflective models have integral polarization filters, they correctly detect even glossy objects such as shrink-wrapped packages or foil. ML100 retroreflective models are ideal for applications such as a trigger to start or stop a conveyor.
| Model Number | Features |
|---|---|
| ML100-55/103/115 | 5 m sensing range, 1 PNP output, 2 m cable |
| ML100-55/102/115 | 5 m sensing range, 1 NPN output, 2 m cable |
| ML100-55/95/103 | 5 m sensing range, 1 PNP output, 4-pin M8 connector |
| ML100-55/95/102 | 5 m sensing range, 1 NPN output, 4-pin M8 connector |
| Reflectors and reflective tapes | Reflector accessories |
| OMH-10 | Mounting bracket accessory |
ML100 thru-beam sensors are used when the highest optical strength or the longest sensing distances are required. Thru-beam sensing involves two housings: a transmitter and a receiver.
ML100 thru-beam models are ideal for long-range sensing, such as detection of engine blocks in an automotive environment, or for dirty or dusty environments when higher optical strength is needed.
| Model Number | Features |
|---|---|
| M100-RT/76b/115 | Transmitter/Emitter only, 10 m sensing range, 2 m cable, for use with receivers MV100-RT/103/115 or MV100-RT/102/115. |
| MV100-RT/103/115 | Receiver only, 10 m sensing range, 1 PNP output, 2 m cable, for use with the M100-RT/76b/115 or M100-RT/76a/115 emitter. |
| MV100-RT/102/115 | Receiver only, 10 m sensing range, 1 NPN output, 2 m cable, for use with the M100-RT/76b/115 or M100-RT/76a/115 emitter. |
| OMH-10 | Mounting bracket accessory |
| Model Number | Features |
|---|---|
| M100-RT/35/76b/115 | Transmitter/Emitter only, 20 m sensing range, 2 m cable, for use with receivers MV100-RT/35/103/115 or MV100-RT/35/102/115. |
| MV100-RT/35/103/115 | Receiver only, 10 m sensing range, 1 PNP output, 2 m cable, for use with the M100-RT/35/76b/115 or M100-RT/35/76a/115 emitter. |
| MV100-RT/35/102/115 | Receiver only, 10 m sensing range, 1 NPN output, 2 m cable, for use with the M100-RT/35/76b/115 or M100-RT/35/76a/115 emitter. |
| OMH-10 | Mounting bracket accessory |
